112V/112T

A high-efficiency, multi-purpose plunger pump for cleaning and spraying with .7 to 1.0gpm up to 300psi.


Description

A simple plunger pump originally designed for cleaning in the floor care industry but now used in many other industries due to its versatility. Designed to fit our 1/8hp permanent magnet DC motors in a variety of voltages. Can be configured with multiple elastomer choices to meet your fluid compatibility needs and can be optimized to your application flow rates. This pump is proudly made in the USA from aircraft-grade aluminum and stainless steel.


Specifications

Body
Hardcoat Aluminum
Plunger
Stainless Steel
Valves
Stainless Steel
Inlet Port
(2) - 1/4" NPT (F)
Discharge Port
(2) - 1/4" NPT (F)
Max Fluid Temp.(°F)
140

Features

1
2
3

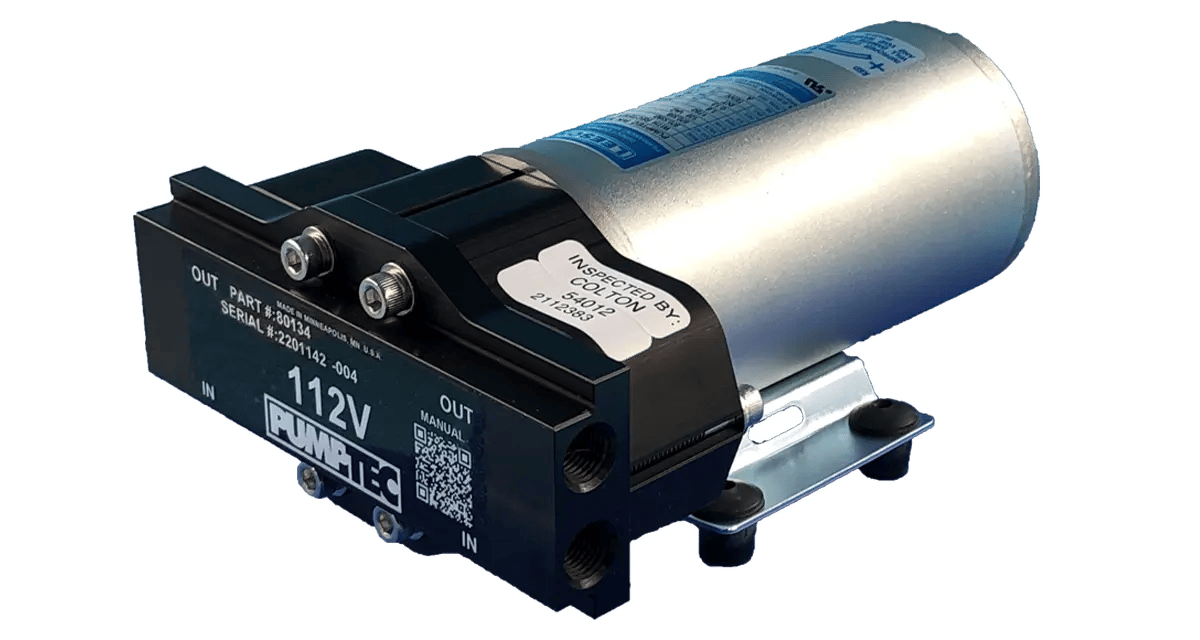

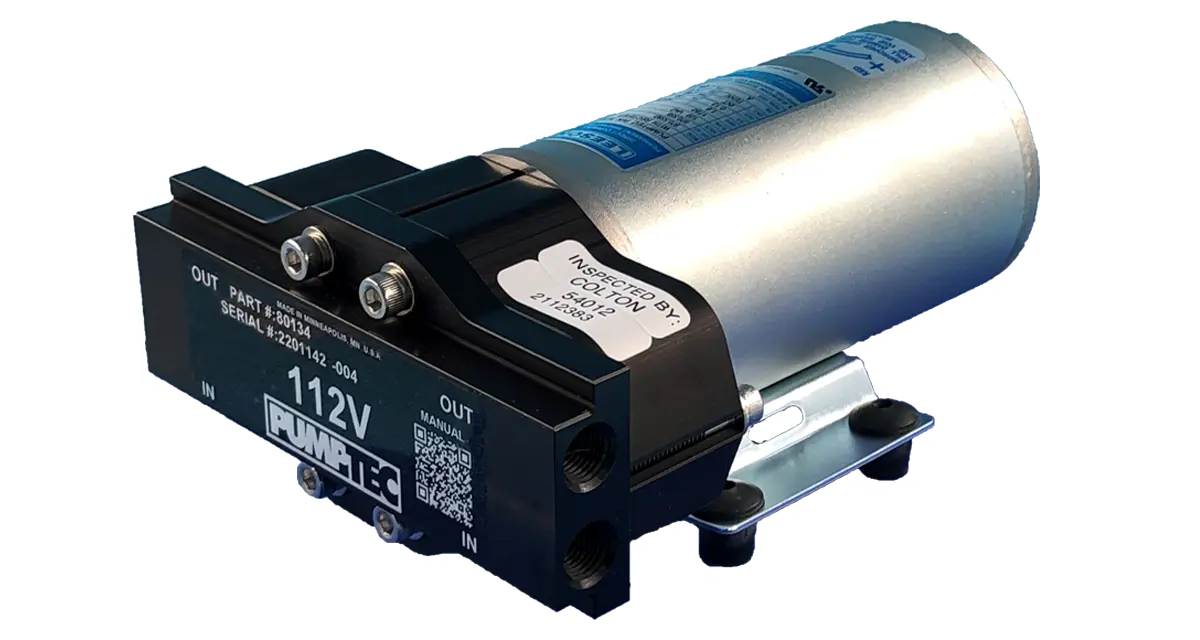

112V-M70 RIGHT ISO

Configurations

Model
112V-12VDC
Max Pressure (PSI)
400
Open Flow (GPM)
1.20
Seals
NBR
Volts
12VDC
Amps
15
Performance Chart
View PDF
Dimensional Images
View PDF
CAD File
View STEP file
 100FC-12VDC
Flow Controller: 100FC-12VDC
 12VDC-15A
Pressure Switch: 12VDC-15A
Model
112V-24VDC
Max Pressure (PSI)
400
Open Flow (GPM)
1.20
Seals
NBR
Volts
24VDC
Amps
6.5
Performance Chart
View PDF
Dimensional Images
View PDF
CAD File
View STEP file
 100FC-24VDC
Flow Controller: 100FC-24VDC
Model
112V-120VAC
Max Pressure (PSI)
350
Open Flow (GPM)
1.20
Seals
NBR
Volts
120VAC
Amps
1.6
Performance Chart
View PDF
Dimensional Images
View PDF
CAD File
View STEP file
 100FC-120VAC
Flow Controller: 100FC-120VAC
Model
112V-230VAC
Max Pressure (PSI)
300
Open Flow (GPM)
1.25
Seals
NBR
Volts
230VAC
Amps
0.8
Performance Chart
View PDF
Dimensional Images
View PDF
CAD File
View STEP file
 100FC-230VAC
Flow Controller: 100FC-230VAC
Model
112T-12VDC
Max Pressure (PSI)
300
Open Flow (GPM)
1.25
Seals
PTFE/FKM
Volts
12VDC
Amps
15
Performance Chart
View PDF
Dimensional Images
View PDF
CAD File
View STEP file
 100FC-12VDC
Flow Controller: 100FC-12VDC
Model
112T-24VDC
Max Pressure (PSI)
250
Open Flow (GPM)
1.50
Seals
PTFE/FKM
Volts
24VDC
Amps
6.5
Performance Chart
View PDF
Dimensional Images
View PDF
CAD File
View STEP file
 100FC-24VDC
Flow Controller: 100FC-24VDC
Model
112T-120VAC
Max Pressure (PSI)
200
Open Flow (GPM)
1.60
Seals
PTFE/FKM
Volts
120VAC
Amps
1.6
Performance Chart
View PDF
Dimensional Images
View PDF
CAD File
View STEP file
 100FC-120VAC
Flow Controller: 100FC-120VAC
Model
112T-230VAC
Max Pressure (PSI)
275
Open Flow (GPM)
1.60
Seals
PTFE/FKM
Volts
230VAC
Amps
0.8
Performance Chart
View PDF
Dimensional Images
View PDF
CAD File
View STEP file
 100FC-230VAC
Flow Controller: 100FC-230VAC
