217V

Provides cleaning equipment with performance, durability, and value up to 1.0gpm and up to 600psi.


Description

The 217V uses a simple 3 piece design and the proven seal system used for decades in our legendary 207V pump resulting in a compact and reliable pump. The result is a compact, dependable, simple pump capable of flow rates up to 1.5gpm and pressures up to 600psi. Designed to fit our 1/4hp permanent magnet DC motors and 1/2hp AC induction motors. Performance can be optimized to your application flow rates. A versatile plunger pump our customers refer to as "bullet-proof".


Specifications

Body
Anodized Aluminum
Plunger
Stainless Steel
Valves
Stainless Steel
Inlet Port
(2) - 1/4" NPT (F)
Discharge Port
(2) - 1/4" NPT (F)
Max Fluid Temp.(°F)
140

Features

1
2
3

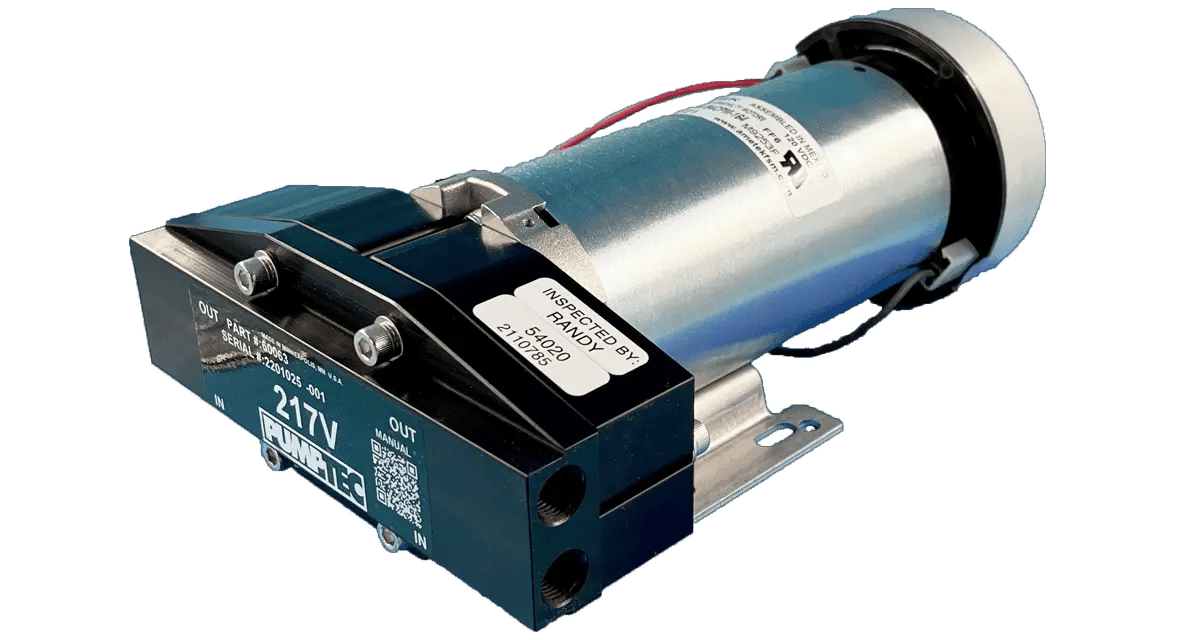

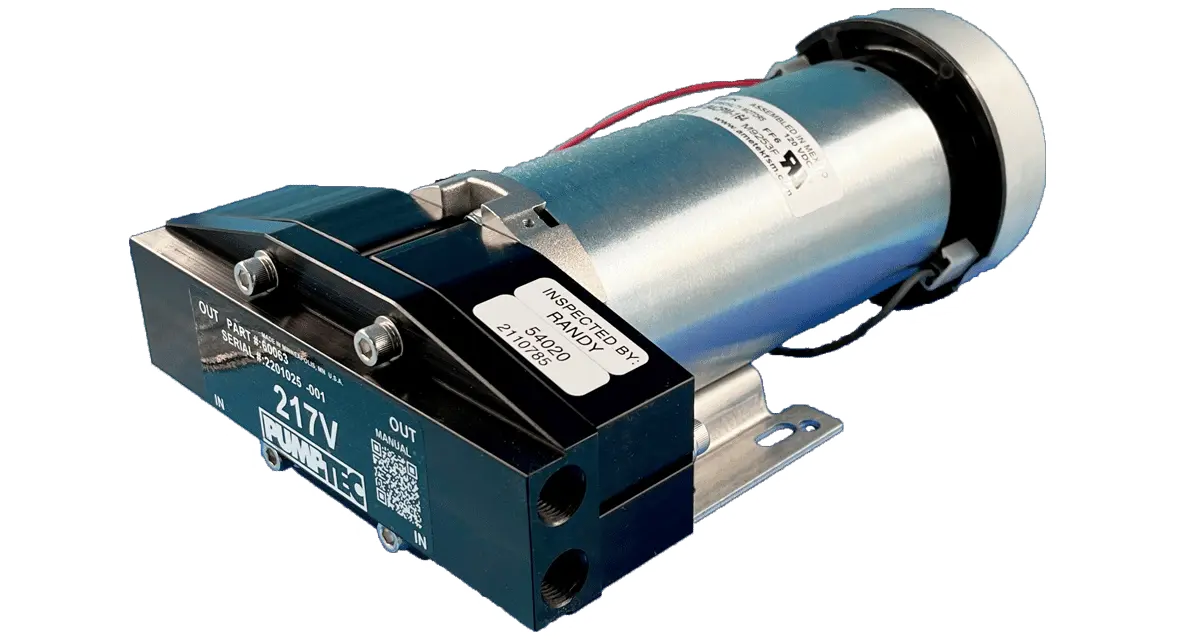

217V FRONT RIGHT ISO

Configurations

Model
217V-120V PMDC
Max Pressure (PSI)
600
Open Flow (GPM)
1.00
Seals
NBR
Volts
120VAC
Amps
3.2
Performance Chart
View PDF
Dimensional Images
View PDF
CAD File
View STEP file
Model
217V-230V PMDC
Max Pressure (PSI)
600
Open Flow (GPM)
1.00
Seals
NBR
Volts
230VAC
Amps
1.6
Performance Chart
View PDF
Dimensional Images
View PDF
CAD File
View STEP file
Model
217V-120/230VAC
Max Pressure (PSI)
600
Open Flow (GPM)
1.50
Seals
NBR
Volts
120/230VAC
Amps
3.2/1.6
Performance Chart
View PDF
Dimensional Images
View PDF
CAD File
View STEP file
