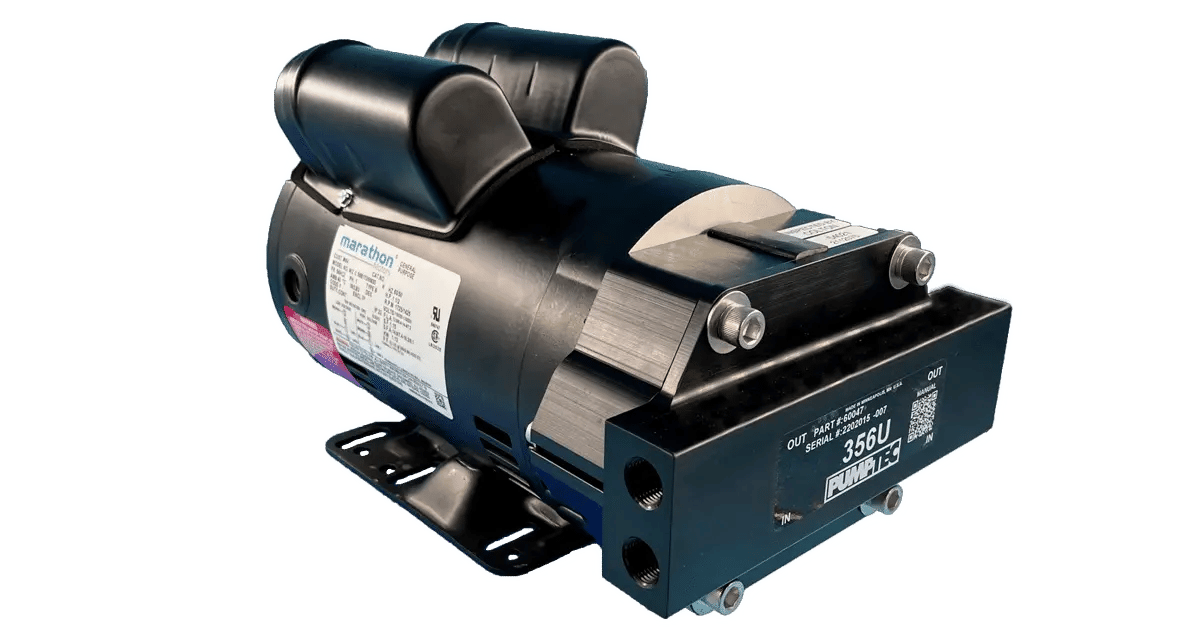

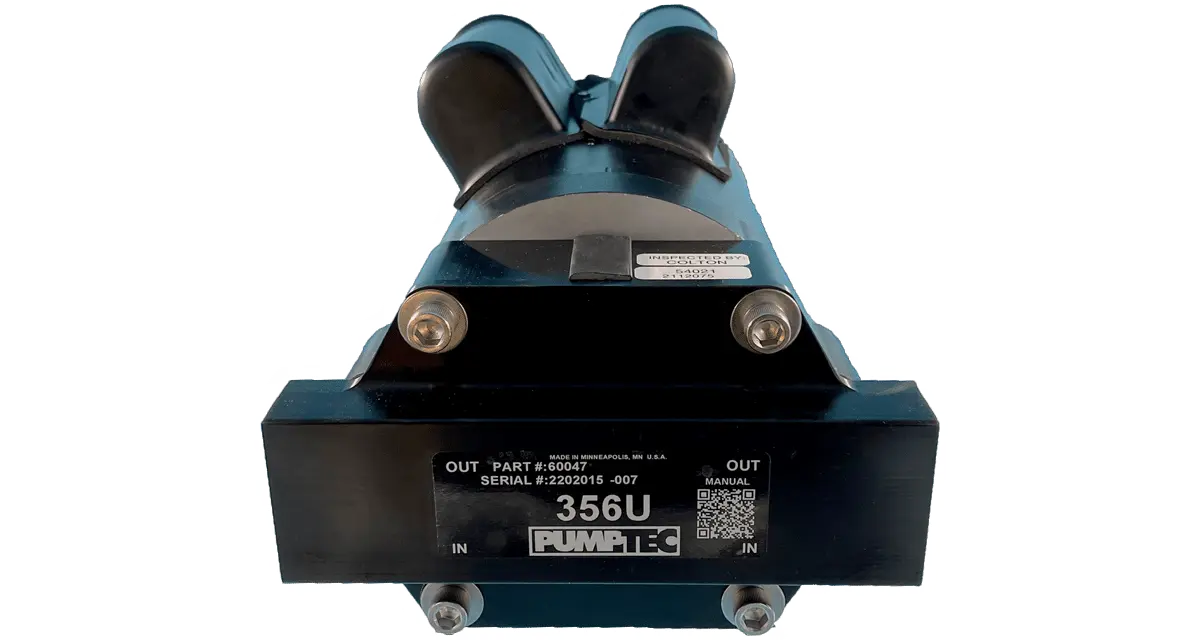

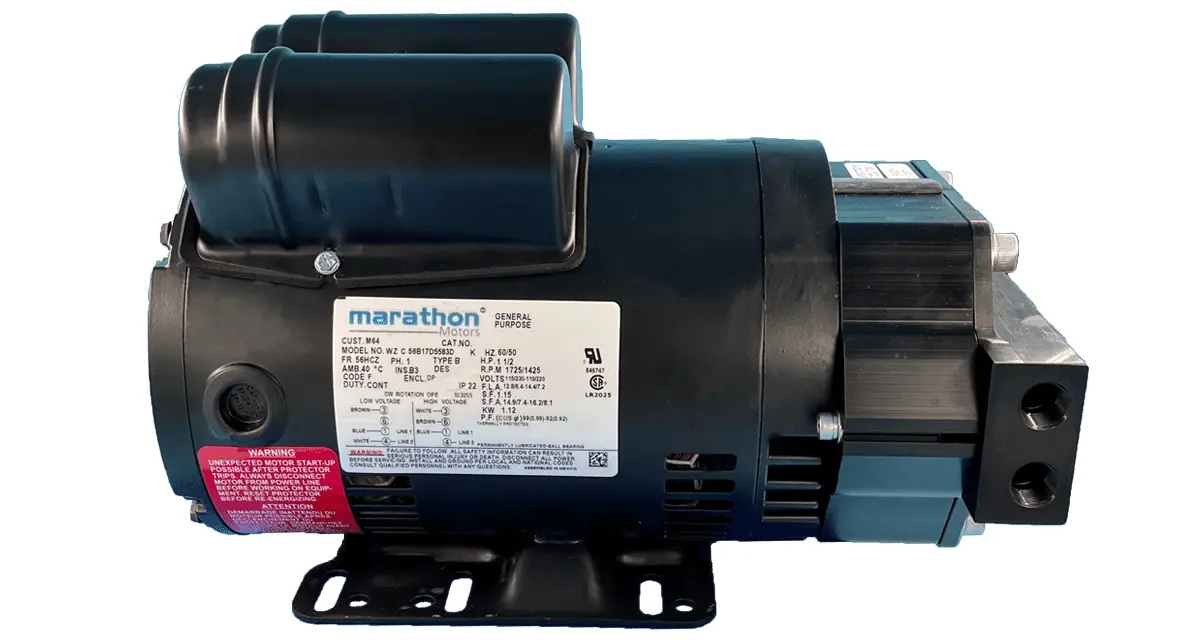

356U

Muscles high-pressure performance into a variety of commercial cleaning equipment up to 3.0gpm and 1200psi.


Description

The 356U plunger pump was developed with improved performance for power washers, hydrostatic testing, and cleaning hard surfaces such as tile and grout. This high performance electric power washer pump is capable of operating 2.2gpm and 1,200psi for cleaning with a #4 nozzle with the smallest footprint in the industry. Since there is no oil in the crankcase, the 356U can be tipped completely upside down without causing an issue. Available with a 3/4hp permanent magnet motor, 1/2hp AC induction motor or 1.5hp AC induction motor. The 356U pump is proudly made in the USA from aircraft-grade aluminum and stainless steel.


Specifications

Body
Anodized Aluminum
Plunger
Stainless Steel
Valves
Stainless Steel
Inlet Port
(2) - 3/8" NPT (F)
Discharge Port
(2) - 3/8" NPT (F)
Max Fluid Temp.(°F)
140

Features

1
2
3
356U RIGHT ISO

Configurations

Model
356U-12VDC 60A
Max Pressure (PSI)
600
Open Flow (GPM)
3.00
Seals
NBR
Volts
12VDC
Amps
60
Performance Chart
View PDF
Dimensional Images
View PDF
CAD File
View STEP file
 100FC-12VDC
Flow Controller: 100FC-12VDC
Model
356U-120/230VAC
Max Pressure (PSI)
1200
Open Flow (GPM)
3.00
Seals
NBR
Volts
120/230VAC
Amps
14.9/8.1
Performance Chart
View PDF
Dimensional Images
View PDF
CAD File
View STEP file
