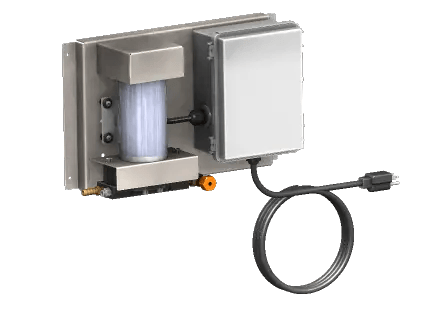

Variable Speed Flow Controllers

Adjust pump flow rate by turning a knob


Description

Control the flow rate of any Pumptec 100 series pumps by turning a knob. Great for systems requiring precise flow rates. Calibrate your pump during initial installation for repeatable flow performance. Also protects against overloads by monitoring and limiting motor amps.


Specifications

Mounting Plate
Stainless Steel
Control Box
Nema 4X plastic
Speed Range (ratio)
50:1

Configurations

Model
100FC-12VDC
Input Voltage
10-15VDC
Amp Rating
14A (Max Continuous)
Control Type
PWM
Operating Frequency
> 16kHz
Dimensional Images
View PDF
CAD File
View STEP file
Model
100FC-24VDC
Input Voltage
20-30VDC
Amp Rating
14A (Max Continuous)
Control Type
PWM
Operating Frequency
> 16kHz
Dimensional Images
View PDF
CAD File
View STEP file
Model
100FC-120VAC
Input Voltage
115VAC-60Hz
Amp Rating
3.5A (Max DC Load)
Control Type
SCR
Operating Frequency
NA
Dimensional Images
View PDF
CAD File
View STEP file
Model
100FC-230VAC
Input Voltage
208/230VAC - 50/60Hz
Amp Rating
3.5A (Max DC Load)
Control Type
SCR
Operating Frequency
NA
Dimensional Images
View PDF
CAD File
View STEP file
